Mac PTFE Lining of Texas, United State, is a prominent manufacturer of top-quality PTFE Lined Cross fittings. With expertise in corrosion-resistant products Mac PTFE Lining offers long-lasting, chemically inert products suitable for extreme industrial environments. Mac PTFE Lining’s PTFE Lined Cross fittings provide tight leak-proof connections and excellent protection against aggressive chemicals making them excellent for applications in chemical processing, pharma and petrochemicals. Mac PTFE Lining uses state-of-the-art technology combined with skilled craftsmanship to ensure long-lasting, reliable performance.

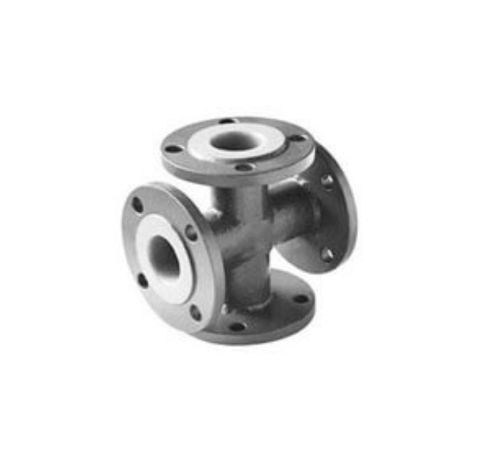

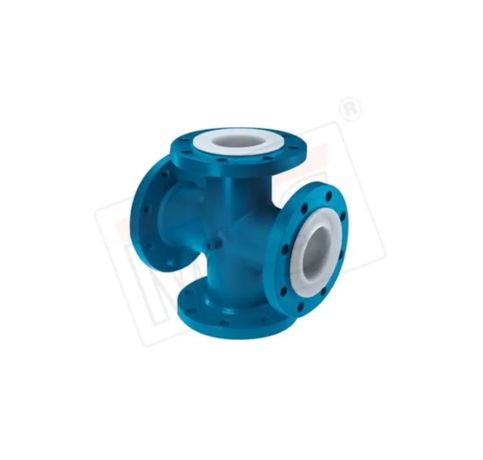

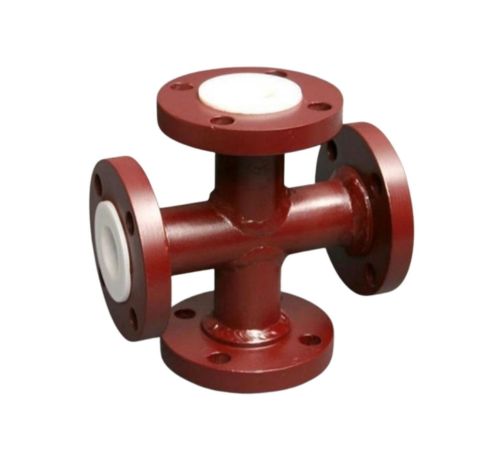

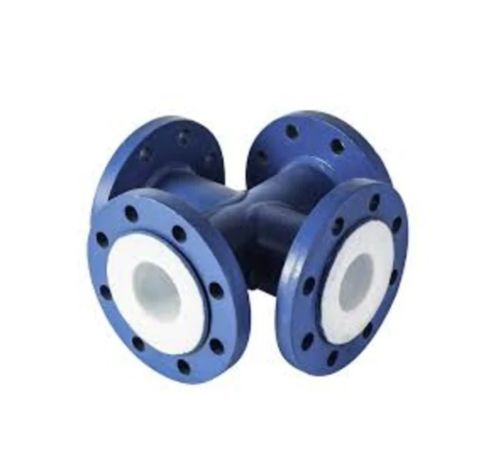

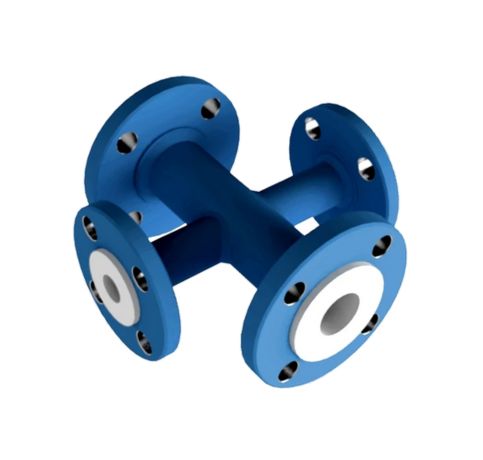

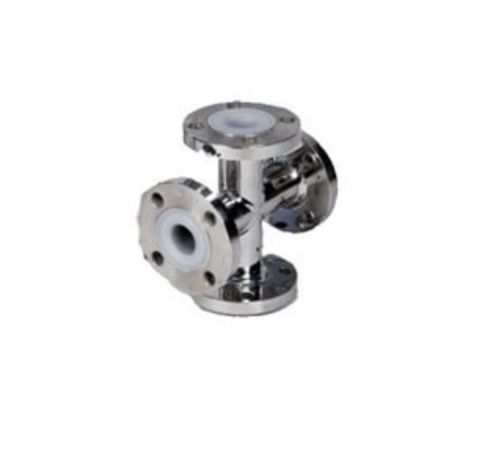

A PTFE-lined cross is a specialized four-way pipe fitting crafted for handling corrosive fluids. It boasts an inner lining made of Polytetrafluoroethylene (PTFE), a remarkably inert material that provides outstanding resistance to chemicals, corrosion and high temperatures. This thoughtful design guarantees safe and dependable distribution or redirection of fluids in sectors like chemical processing, pharmaceuticals, and beyond. Plus, the PTFE lining helps reduce friction, cuts down on maintenance needs, and boosts the fitting’s durability, making it a perfect choice for tough industrial settings.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Mac PTFE Lining is a leading supplier of PTFE Lined Cross in Texas, Texas, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| CLASS – 150 # | ||||||||||
| NB | L | FLG. | RF | PCD | App. | App. | LINER THK | N x M | WEIGHTS | |
|---|---|---|---|---|---|---|---|---|---|---|
| O / D | O / D | T1 | T1 | Vaccume (T) | Non Vacc (T) | (kg/piece) | ||||
| 1/2″ | —- | 89 | 35.1 | 60.5 | 14.2 | 24.2 | 3.0 | 3.0 | 4 x 1/2″ | 4 |
| 3/4″ | —- | 98 | 42.9 | 69.9 | 15.7 | 27.7 | 3.0 | 3.0 | 4 x 1/2″ | 3.5 |
| 1″ | 89 | 108 | 50.8 | 79.2 | 17.2 | 29.2 | 4.0 | 3.0 | 4 x 1/2″ | 5.5 |
| 1 1/4″ | 95 | 118 | 63.5 | 88.9 | 18.7 | 30.2 | 4.0 | 3.0 | 4 x 1/2″ | 7.7 |
| 1 1/2″ | 102 | 127 | 73.2 | 98.6 | 20.5 | 32.5 | 4.0 | 3.0 | 4 x 1/2″ | 8.7 |
| 2″ | 114 | 152 | 91.9 | 120.7 | 22.1 | 37.1 | 4.0 | 3.0 | 4 x 1/2″ | 14.0 |
| 2 1/2″ | 127 | 178 | 104.6 | 139.7 | 25.4 | 40.4 | 4.0 | 3.0 | 4 x 5/8″ | 20.6 |
| 3″ | 140 | 191 | 127.0 | 152.4 | 27.9 | 42.9 | 4.0 | 3.0 | 4 x 5/8″ | 24.8 |
| 4″ | 165 | 229 | 157.2 | 190.5 | 28.9 | 43.9 | 4.5 | 3.0 | 8 x 5/8″ | 39.1 |
| 5″ | 190 | 254 | 185.7 | 215.9 | 28.9 | 43.9 | 6.0 | 5.0 | 8 x 3/4″ | 68.8 |
| 6″ | 203 | 279 | 215.9 | 241.3 | 30.4 | 45.4 | 6.0 | 5.0 | 8 x 3/4″ | 79.5 |
| 8″ | 229 | 343 | 269.7 | 298.5 | 33.4 | 48.4 | 6.0 | 5.0 | 8 x 3/4″ | 99.0 |
| 10″ | 280 | 406 | 323.9 | 362.0 | 35.7 | 50.7 | 7.5 | 5.0 | 12 x 7/8″ | 160.0 |
| 12″ | 305 | 483 | 381.0 | 431.8 | 37.8 | 52.8 | 7.5 | 5.0 | 12 x 7/8″ | 280.0 |
Withstands harsh acids and solvents.
Prevents fluid leakage at joints.
Suitable for extreme process heat.
Tailored to fit system specifications.
Use proper gaskets, follow torque specifications, and ensure flange alignment to avoid stress on the lining during installation.
Yes, PTFE can generally withstand temperatures up to 260°C, making it suitable for high-temperature processes.
Standard sizes typically range from 25mm to 300mm NB, but custom sizes can also be manufactured upon request.
PTFE lined versions provide chemical resistance and prevent contamination or corrosion from harsh media.
Yes, they are compatible with a wide range of aggressive acids, bases, solvents, and other harsh chemicals.
